Sample work.

Sample work, made up for this site. Three packs, each shown from the first sketch to the finished list.

1Pack Steel wall panel

Sample work

Sketch, drawing, cutting list, bar plan.

Your sketchOur drawing
Drag the line to move from the sketch to the drawing. Member sizes to be confirmed by your engineer. Open the drawing full size
Cutting list, wall panel P1. Lengths in mm.
MarkItemSectionQtyLength
S1Stud, full heightC8912,690
S2Stud, full heightC8912,690
S3Stud, full heightC8912,690
S4Stud, full heightC8912,690
S5Stud, full heightC8912,690
J1Jack studC8912,095
J2Jack studC8912,095
H1Header, back to backC8911,160
H2Header, back to backC8911,160
C1Cripple below sillC891895
C2Cripple above headerC891506
N1NogginC891540
N2NogginC891560
N3NogginC891540
Total, C89 section1423,001
T1Top trackU9013,000
T2Bottom trackU9013,000
STSill trackU9011,160
Total, U90 section37,160

The C89 section in numbers

Stock bars
4bars of 6000 mm
Offcuts and saw cuts
4.2percent

Ready for your engineer

The pack is set out so your engineer can check it quickly. The checking and sign-off are theirs, not ours.

  • Every member with its mark, section and length, in one clean schedule.
  • Openings and headers drawn and dimensioned.
  • Section sizes marked as to be confirmed.
  • A short notes sheet of what your engineer needs to confirm.
Bar plan: C89 section on 6000 mm stock barsBar 1S1 2690S2 2690N2 56051 leftBar 2S3 2690S4 2690N1 54071 leftBar 3S5 2690J1 2095H1 116046 leftBar 4J2 2095H2 1160C1 895N3 540C2 506789 left

Swipe sideways to see the whole drawing.

Bar plan, C89 section on 6000 mm bars

Want a pack like this?

Get a written quote

2Pack Fitted wardrobe

Sample work

Sketch, drawing, panel list, sheet cutting plan, render.

Your sketchOur drawing
Drag the line to move from the sketch to the drawing. Open the drawing full size
Panel list, fitted wardrobe W1. 18 mm board, sizes in mm.
MarkItemQtyLength × width
G1Gable (end panel)22,300 × 580
TPTop panel12,364 × 580
BTBottom panel12,364 × 580
DVDivider12,264 × 580
SHAdjustable shelf (right bay)31,170 × 560
PLPlinth12,364 × 100
DRDoor42,290 × 585
Total1314.28 m²

Also needed, not cut from board: hanging rail 25 mm tube, 1,170 mm long.

The wardrobe in numbers

Sheets
6sheets of 2440 × 1220
Waste
20.0percent
Sheet 1DR2290 x 585DR2290 x 585Sheet 2DR2290 x 585DR2290 x 585Sheet 3TP2364 x 580BT2364 x 580Sheet 4G12300 x 580G12300 x 580Sheet 5DV2264 x 580SH1170 x 560SH1170 x 560Sheet 6SH1170 x 560PL 2364 x 100

Swipe sideways to see the whole drawing.

Sheet cutting plan, six sheets of 18 mm board

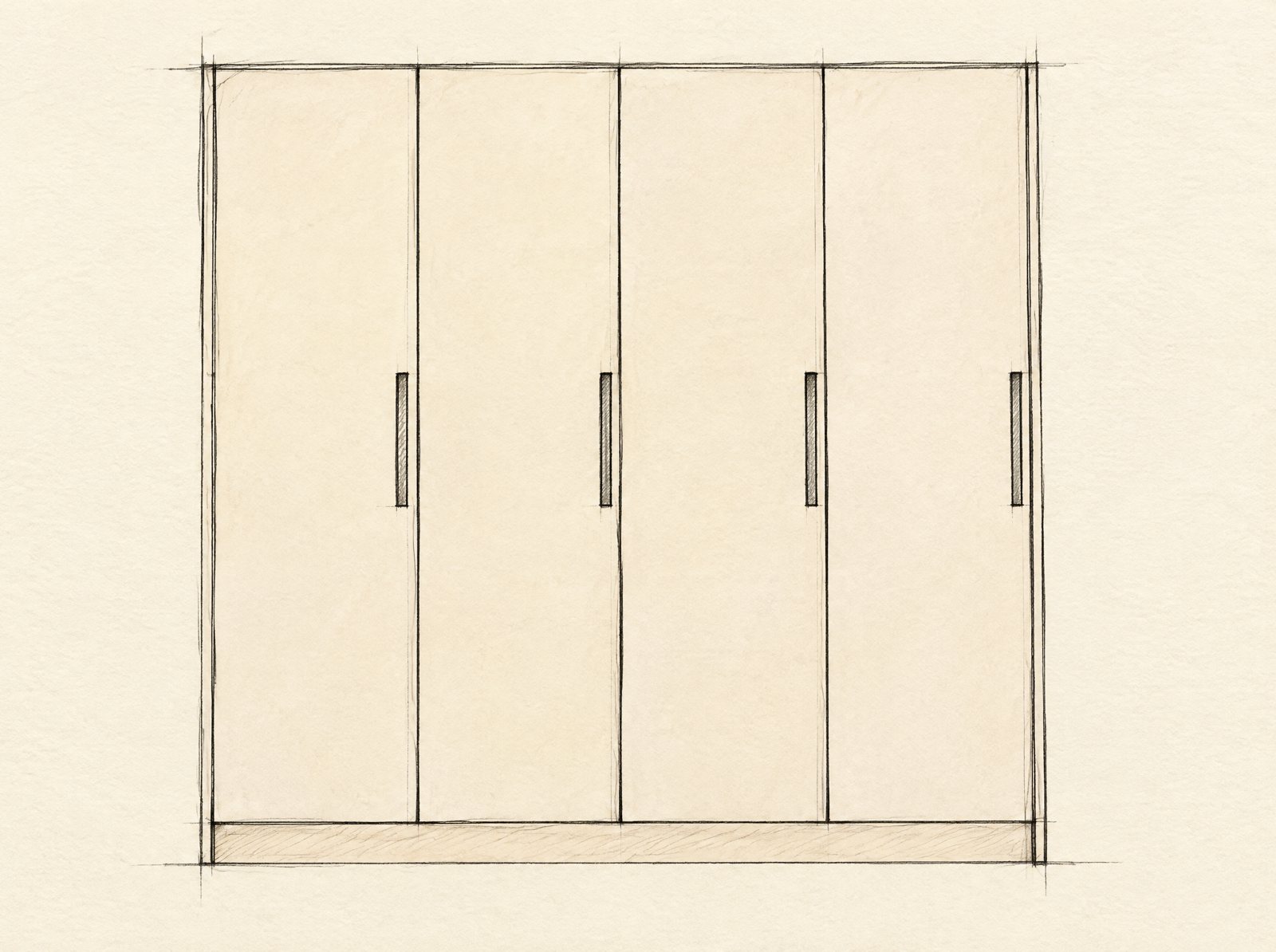

Step 1: the sketch

A pencil and wash sketch of a fitted wardrobe with four tall flush doors, recessed handles and a plinth.

Step 2: the render

A fitted wardrobe with four oak veneer doors and recessed handles in a bright room.

Want a pack like this?

Get a written quote

3Pack Garden room

Sample work

Sketch, render, wall build-up.

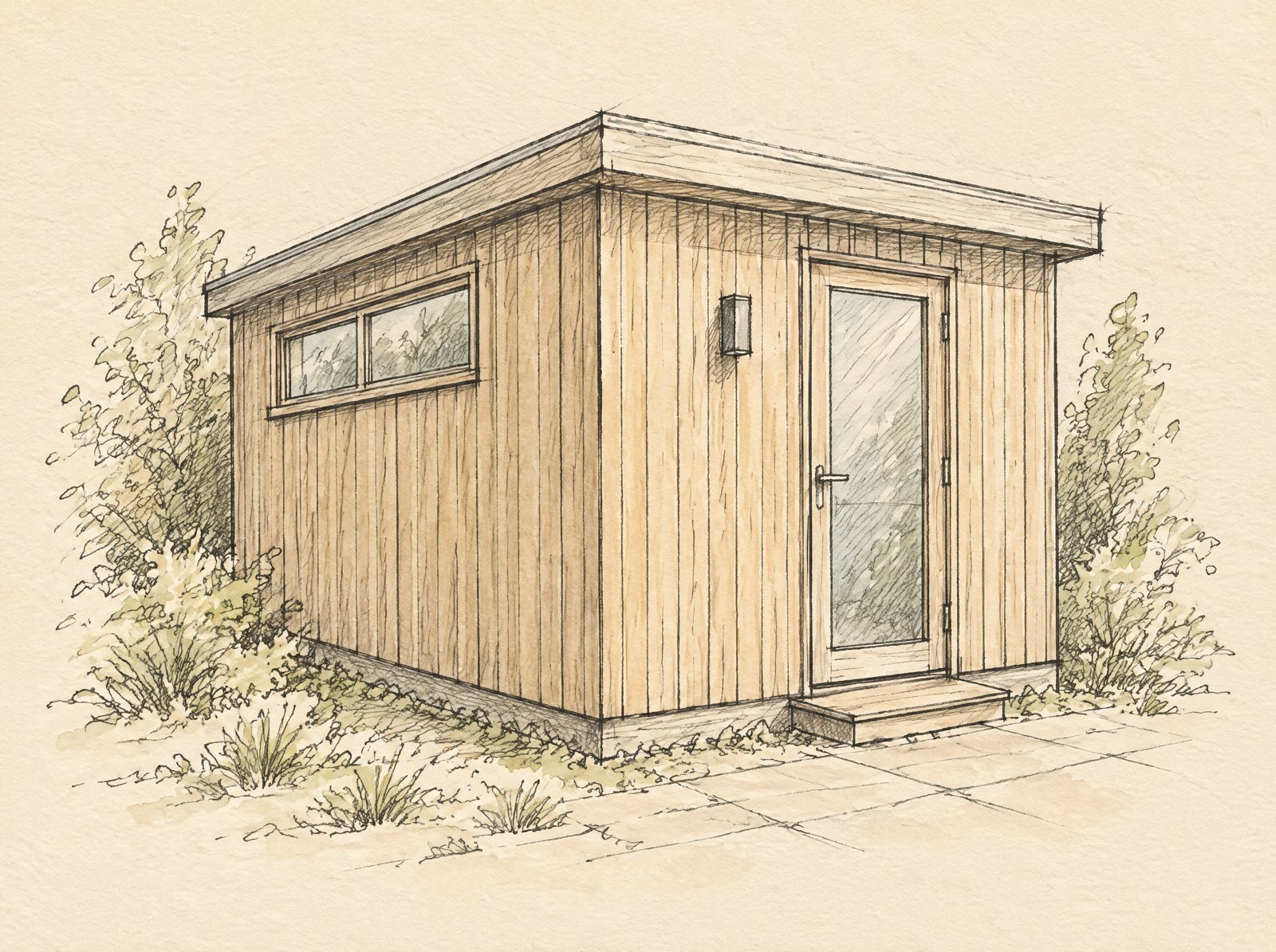

Step 1: the sketch

A pencil and wash sketch of a small flat roofed garden room with vertical cladding, a window, a glazed door and planting.

Step 2: the render

A dark timber clad garden room at dusk with a lit window and door, set in a lawn.
202550893812.5234.5 overallTimber cladding 20Batten and cavity 25Breather membraneRigid insulation board 50Steel stud C89 89Vapour control layerService void battens 38Plasterboard 12.5OUTSIDEINSIDENominal thicknesses for illustration. Materials to be confirmed with your supplier and engineer.SAMPLE WORKWALL BUILD-UPSECTION
Open the drawing full size
Wall build-up, eight layers, 234.5 mm, nominal
Wall build-up, outside to inside. Thickness in mm.
No.LayerThickness
1Timber cladding20
2Batten and cavity25
3Breather membranefilm
4Rigid insulation board50
5Steel stud C8989
6Vapour control layerfilm
7Service void battens38
8Plasterboard12.5
Overall, nominal234.5
